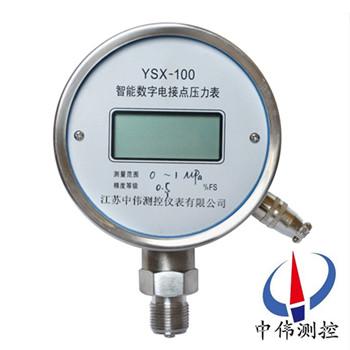

Intelligent digital electric contact pressure gauge
Description：
This product has a sensor failure diagnosis and over range protection function, when the pressure sensor is not reliable connection in the circuit, the instrument can automatic diagnosis to the fault, and on the LCD screen shows "Err".This state has maintained the sensor reliable work again.
When measuring the pressure of the scope of more than 10% of full scale, the instrument can still be normal, but the lower precision, it is suggested to solve this kind of situation, so as to avoid the instrument range was damaged.
In order to prevent the system pressure gauge of instantaneous range, instrument damage, 75% of the measured pressure value should be in full scale.
Nine, selection of code:
code | Code instructions | |||||||
YSX-100 | In the wei and control | Digital electric contact pressure gauge | ||||||
watchcase | 1 | Stainless steel shell | ||||||
2 | Aluminum alloy shell | |||||||
Precision grade | 1 | 1% | ||||||
0 | 0.5% | |||||||
Pressure sensor | S | The diffusion silicon sensor | ||||||
B | Ceramic sensors | |||||||
C | Spring tube sensor | |||||||
Measuring range | M | - 100 kpa ~ 60 mpa since | ||||||
The installation interface | N | M20X1. 5 threads | ||||||
G | Since the set | |||||||
YSX-100 | 1 | 1 | C | M | G | Please complete the selection | ||
