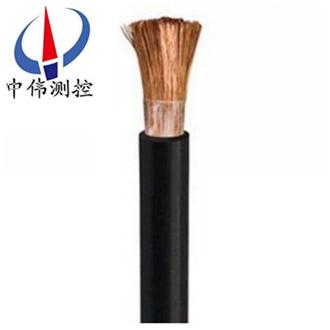

General rubber set soft cable
Gm as a set of flexible cable of a wide range of application.All required movable connection of gene…
Description：
One, the cable's brief introduction:
General rubber set soft cableIs fit for ac rated voltage up to and including 450/750 of household appliances, electric tools and various portable electric equipments.
Execution standard: JB8735.2-1998.
Four, type and name and main purposes
1.YZYZW
Name: medium rubber set soft cable.
Main application: used for various portable electric equipment and tools.
2.YCYCW
Name: heavy rubber set soft cable.
Main application: used for various portable electric equipment, can bear larger external mechanical forces.
3.YH
Natural rubber welding cable
Main USES: mainly used for welding wire
Five, general rubber set soft cable using features:
1, rated voltage 300/500 v (z), 450/750 v type (YC)
2, line core long-term allowed working temperature shall not exceed 65 ℃
3, "W" type cable climate resistance and oil resistance, suitable for outdoor use or access to oil pollution occasion
4, ZR - type cable with flame retardant performance
Six, specification range:
1, some conclusions: 2 ~ 24 core.Nominal cross section: 0.5 ~ 2.5 was (conductor structure for class B or class R)
2, cable shape size and KVV KVVP, KYJVP are the same
Seven, model name:
model | The name of the | The main scope of use |
YQ、YQW | Lightweight rubber set soft cable | Used for light mobile electrical equipment and tools |
YZ、YZW | Medium-sized rubber set soft cable | Used for various portable electric equipment and tools |
YC、YCW | Heavy rubber set soft cable | Used for various portable electric equipment, can bear larger external mechanical forces |
YH | Natural rubber welding cable | High strength rubber sleeve welding machine cable, commonly known as the holder, used for welding the second side wiring and special cable connected to the electrode holder, welding machine, its characteristics is large, low electric resistance. |
YHF | Neoprene welding cable |
Eight, cable nominal voltage, nominal conductor cross section and some conclusions:
model | Rated voltage (V) | some | Nominal section (was) |
YQ、YQW | 300/300 | 2, 3 | 0.3-0.5 |
YZ、YZW | 300/500 | 2, 5-tetrafluorobenzoic | 0.75-6 |
YC、YCW | 450/750 | 1 2 3, 4 5 | 1.5-240. 1-95. 1-150. 1.5-25 |
YH、YHF | 450/750 | 1 | 16-95. |
Nine, delivery requirements:
1. According to mutual agreement to allow any length of cable delivery length error of plus or minus 0.5%.
2. User requirements for products flame retardant characteristics, with the supplementary agreement in the contract.
